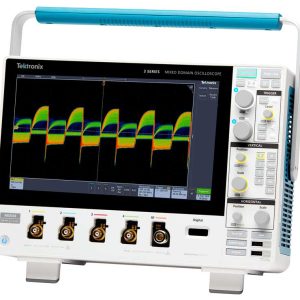

Tektronix MDO32 Oscilloscope

Tektronix MDO32 Oscilloscope

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyser built right in with superior RF test performance and guaranteed RF specifications.

Supercharged Tektronix 3 Series Mixed Domain Oscilloscope Promotion

Get 68% discount when you purchase a qualifying Tektronix 3 Series MDO!

For a limited time, if you purchase a qualifying 3 Series MDO you will receive:

  • FREE bandwidth upgrade to next level higher bandwidth

PLUS:

THREE FREE Options:

  • 3-BND – Application bundle with serial decode buses such as I2C, SPI, CAN, LIN & USB plus automated power analysis
  • 3-MSO – 16 digital channels; free up your analogue channels and see more signals by upgrading to mixed signal capability
  • 3-AFG – Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation

Offer ends June 30th 2024

To find out more contact a member of our team today

To see the terms and conditions click here

SKU: MDO32 Category:

Key Features

  • 2 and 4 analogue channel models
  • 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models
  • Bandwidth is upgradable (up to 1 GHz)
  • Up to 5 GS/s sample rate
  • 10 M record length on all channels
  • >280,000 wfm/s maximum waveform capture rate
  • Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz, 500 MHz or 1 GHz analogue bandwidth
  • Spectrum analyser
  • Frequency range: 9 kHz – 1 GHz (standard) or 3 GHz (optional)
  • Ultra-wide capture bandwidth up to 3 GHz
  • Arbitrary Function Generator (optional)
  • 13 predefined waveform types
  • 50 MHz waveform generation
  • 128 k arbitrary generator record length
  • 250 MS/s arbitrary generator sample rate
  • Digital Channels (optional)
  • 16 digital channels
  • 10 M record length on all channels
  • 121.2 ps timing resolution
  • Serial Bus Decode, Triggering and Search (optional)
  • Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and Audio standards
  • Digital Voltmeter / Frequency Counter (Free with product registration)
  • 4-digit DC, AC RMS, and DC+AC RMS voltage measurements
  • 5-digit frequency measurements
