Soft Panel RTCA DO-160G

Soft Panel RTCA DO-160G

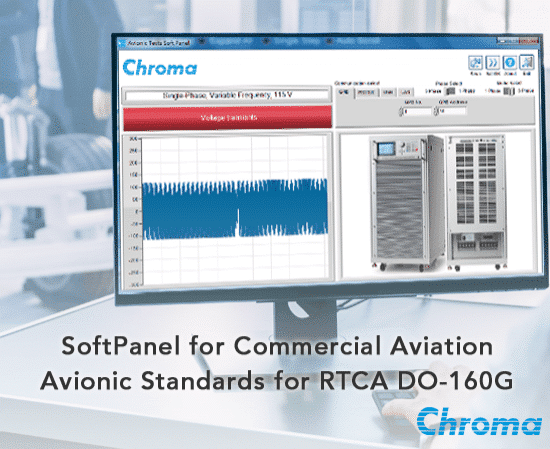

Soft Panel RTCA DO-160G is a test solution software designed by Chroma to test aviation products’ electromagnetic compatibility (EMC) and environmental performance. The software provides a flexible and efficient platform to perform test procedures and measurements according to RTCA DO-160G standards.

Hardware Requirements:
Soft Panel RTCA DO-160G runs on a personal computer (PC) with the following minimum requirements:

  • Intel Core i5 processor or higher
  • 8GB of RAM
  • 500GB hard drive
  • Windows 7, 8, or 10 operating system
  • Ethernet port for instrument control
  • Software Requirements:
    Soft Panel RTCA DO-160G requires the following software to operate:

  • .NET Framework 4.6.2 or higher
  • NI-VISA 17.5 or higher
  • NI-DAQmx 17.5 or higher
  • National Instruments LabVIEW Runtime Engine 2017 or higher
  • Features:
    Soft Panel RTCA DO-160G includes the following features:

    Test Standards:
    Soft Panel RTCA DO-160G is designed to meet the following test standards:

  • RTCA DO-160G: Environmental Conditions and Test Procedures for Airborne Equipment
  • MIL-STD-461F: Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment
  • Instrument Compatibility:

    Soft Panel RTCA DO-160G is compatible with the following instruments:

  • Chroma 19311/19312 EMI receiver
  • Chroma 12515/12516 LISN
  • Chroma 19020/19032/19036/19073 AC source
  • Chroma 61800/61810/61820 Regenerative Grid Simulator
  • Chroma 6530 Series DC Power Supply
  • Chroma 63600/63800 DC Electronic Load
  • Incorporates RTCA D0-160G avionic regulations
  • Displays test item content
  • Supports editing of the test sequence
  • Supports GPIB/RS-232C/USB/Ethernet communication interface
  • Category:

    Key Features

  • Support for RTCA DO-160G test procedures for electromagnetic interference (EMI), radio frequency interference (RFI), and environmental testing.
  • Automatic generation of test reports.
  • Integration with Chroma’s test systems and instruments.
  • Real-time data acquisition and waveform display.
  • Support for multiple languages, including English and Chinese.
  • Easy-to-use graphical user interface (GUI).
