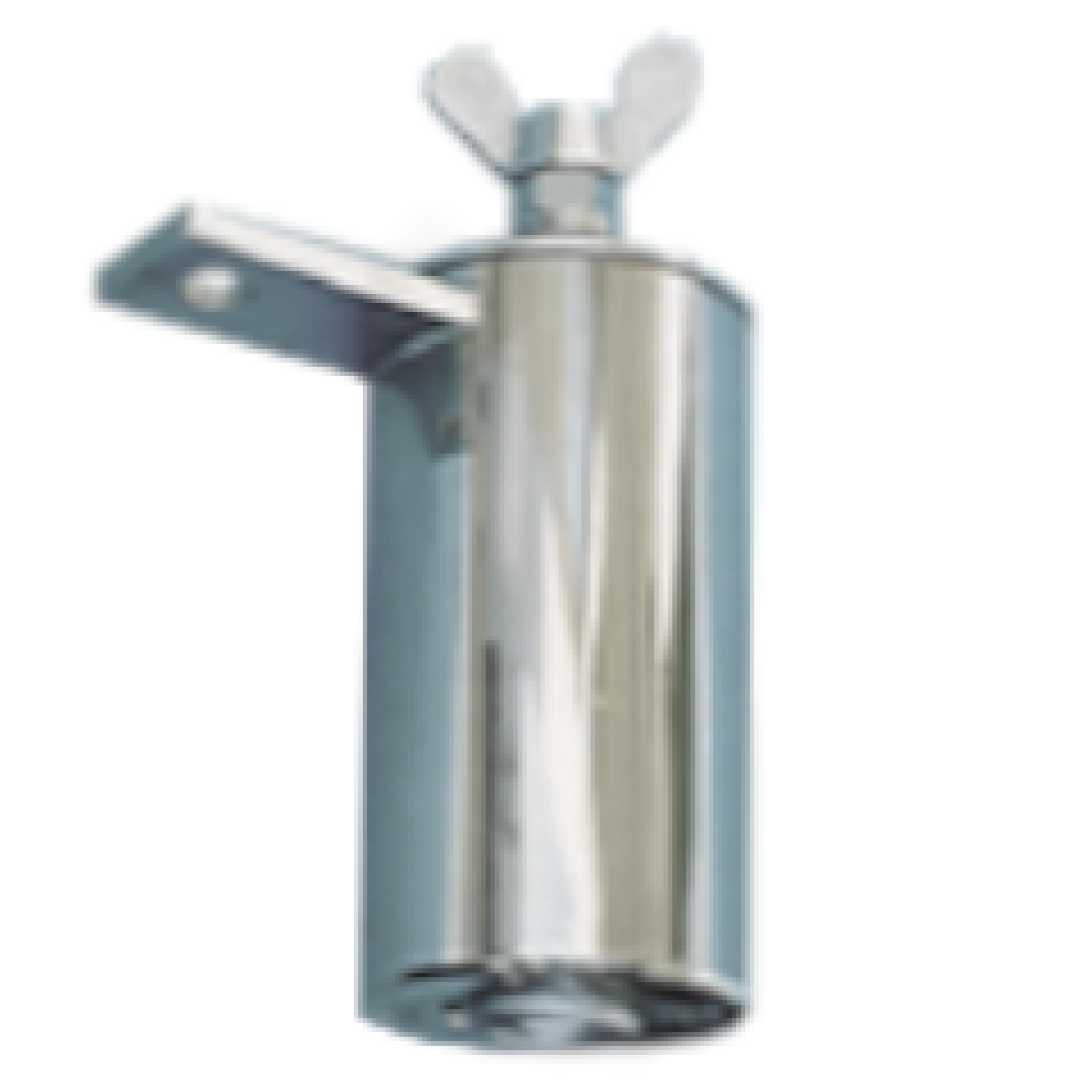

These shunts are used for the measurement of high impulse currents in high-voltage test labs. The wave shape of the measured current can be displayed on a HAEFELY highest resolution impulse analysing system HiAS 744. The shunts consist of a metal cylinder with coupling flanges and a coaxial measuring connector

Each resistance value (1, 0.47 and 0.1 Ohm) of the set is a separate shunt. The standard repetition rate allows measuring impulse currents up to 5000 A (voltage drop 500 V), and at reduced repetition rate up to 16000 A are possible (voltage drop 1600 V)
