Raditeq RadiSense® 9 kHz – 10 GHz E-field probe, High speed

RadiSense® 9 kHz – 10 GHz laser powered E-field probe

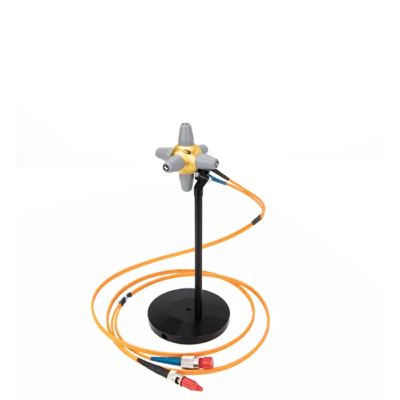

RadiSense® RSS2010B RadiSense® 20 MHz – 10 GHz miniature spherical six antenna elements LASER powered field strength sensor

Specifications

  • Frequency range: 9 KHz to 10 GHz (useable to 12GHz)
  • Measuring range: 0.1 V/m to 750 V/m
  • Frequency response: +/- 1 dB
  • Isotropy: < +/- 0.25 dB up to 1 GHz
  • Measuring speed: 1000 measurements/second.

Standard delivered including

  • 2.5m optic fibre cable fixed connected to the probe
  • PST2000A small probe stand
  • Carrying and protection case
  • Factory verification certificate
  • Hardcopy Quick Start Guide
  • USB stick containing PDF format product manual, datasheet.

Upgrade options

  • Product can be used in combination with RadiCentre Slim (CTR1001S), RadiCentre (CTR1004B) or RadiCentre Pro (CTR1009B).
  • The LASER power supply (LPS2001B) is sold separately
  • ISO17025 accredited calibration
  • PST1001A – 2.3 Meter non-reflective Probe stand used for 16-point calibrations
  • A RadiSense 10B Set including: LPS2001B | Laser power supply + CBL2001-10m | 10m Extension cable + CPL2001A | Coupling set
  • Extension Fibre optic cables – 10m or 20m

Category:

Related products

Key Features

Unique antenna design
The RadiSense® 10 is the most accurate electrical field (E-Field) probe in the world! The probe can be used to measure the field strength over a wide frequency band from 9 kHz to 12 GHz. The ongoing endeavour of Raditeq to improve our products, has now resulted in an unprecedented accurate E-Field probe. Due to its unique antenna design of the RadiSense® 10 an extremely wide frequency range from 9 kHz to 12 GHz is covered with a single E-field probe. This makes the RadiSense® 10 ideal for nearly all (EMC) test applications. The RadiSense® 10 offers a maximum speed of 1000 isotropic measurements per second, enabling fast measurements for all EMC test applications like: Automotive, Military/Aerospace, and Industrial/Telecom testing in anechoic chambers or reverberation chambers.

Five versions
The RadiSense® 10 is available in five versions: The RSS2010I (9kHz – 10GHz)and 10S (20MHz – 10GHz) versions provide the most accurate frequency response and isotropy, with a maximum measurement speed of 100 measurements/second (individual X-Y-Z axis + isotropic value). The model RSS2010B (9kHz – 10GHz) and 10H (20MHz – 10GHz) has an increased measurement speed of 1000 measurements/second at the cost of a slightly higher uncertainty, intended for applications where speed is more important, like mode stir / reverberation chambers. The RSS2010E version has a frequency range of 20MHz – 10GHz, 15 measurements per second and provided as a kit with 1-slot (RadiCentre Slim), Laser card, stand and Fibre.

Modular
The RadiSense® 10 is intended to be used in combination with the RadiCentre modular test system, which is available as a 1-slot (RadiCentre Slim), 2-slot (RadiCentre) or 7-slot (RadiCentre Pro). The probe is connected to the laser power plug-in card (model LPS2001B) with FC/ST dual fibre links. The plug-in card provides the laser power source and bi-directional communication to the probe. The fibre optic extension cable between the RadiSense® 10 probe and the LPS2001B plug-in card is standard available at three different lengths (10, 20 or 30 m). Other lengths to a maximum of 100 m are available on request.



Internal calibration data
The linearity adjustment data, by default is stored inside the probe. In addition, the frequency response calibration data of the X-Y-Z axis can be stored as user correction data inside the probe. As a result, there is no need to apply frequency dependent corrections for individual axis’ in software anymore. This feature results in a high
accuracy and ease-of-use.



Software support
The RadiSense® probes are supported by RadiMation and RadiMation Pro, automated EMC test and measurement software packages. The RadiSense® probes can also be controlled with most other brands of commercial EMC test software packages, like ETS Lindgren TILE and R&S EMC32/Elektra.

Application Notes
