Raditeq RadiGen® 4kHz – 6 GHz – Single output

RadiGen® RF Signal Generator 4 kHz – 6 GHz single output

The ideal EMC/RF Signal Generator

Specifications

  • Frequency range: 4 kHz – 6 GHz
  • Frequency resolution: 1 Hz
  • RF output connector: 1x SMA connector
  • Accuracy: 1 ppm
  • Aging: 1 ppm/year

For further technical specifications, please refer to datasheet

Standard delivered including

  • RadiGen® 2006B
  • Hardcopy Quick Start Guide
  • USB stick containing PDF format product manual, datasheet and ISO17025 accredited calibration certificate (in case ordered separately)

Upgrade options

  • RadiCentre: Plug-in cards the RadiCentre® can be used to make integrated EMC systems

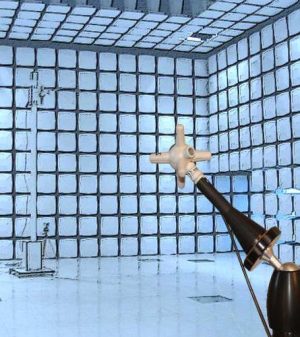

  • RadiField To create a RI test setup in combination with the RadiCentre® and RadiGen®

Category:

Related products

Key Features

An important component of an EMC immunity test system is the RF signal generator. It produces the modulated or un-modulated RF carrier signal at a certain frequency and signal level. The RadiGen® RF Signal generators are optimized for EMC test purposes in order to perform fast and accurate EMC immunity tests without the need of external modulation. .sources.

Flexible

The RadiGen® EMC/RF signal generator is available in three models; the model RGN2400A covers a frequency range from 9 kHz to 400 MHz. The RGN2006B covers the frequency range from 9 kHz to 6 GHz. These models offer a solution for all conducted and radiated immunity test applications. The generator provides CW, AM, FM and Pulse modulated signals using a digital internal modulator. The pulse on/off times can be individually set between 200 ns and 100 s. Pulse duration/repetition times can be configured separately offering very flexible pulse modulation settings including Automotive Radar Gated Pulse (ARGP) tests (Ford, GM and PSA).

Accurate and pure signal

The RadiGen® is an EMC/RF signal generator with a frequency error of less than 1 ppm, a modulation frequency accuracy of 0.5% and an output level settling time which is shorter than 1 ms. These figures make it the perfect generator for fast and accurate EMC immunity testing. Due to the fully solid state design of the RadiGen® issues caused by defects to the output attenuator or RF switches are eliminated. Thus allowing variations in the output power level while maintaining a completely monotone signal without any glitches. Also mechanical defects to the output attenuator cannot occur, thereby resulting in a better Mean Time Between Failure (MTBF) for the RadiGen®.

Modular system

The RadiGen® signal generator is delivered as a very compact, one slot, plug-in card designed to fit into the modular RadiCentre® system. The RadiGen® plug-in card is compatible with the RadiCentre® two or seven slot systems. The system is muntifunctional and can for example contain a RF signal generator (RadiGen®), one or more different E-field probes (RadiSense®), coaxial switch cards (RadiSwitch®), RF power meters (RadiPower®) and an E-field generator (RadiField®). If needed, even larger EMC test systems can be built by combining multiple RadiCentre® systems, still controlled as one system.

Easy to use

The RadiCentre® systems are “Plug and Play”, which means that every plug-in card is automatically recognised and initialised by the RadiCentre® and immediately ready to use. The user can configure and control the system using USB, LAN* and GPIB* or through the touchscreen*.

Software support

The system can be controlled by the RadiMation® integral EMC test and measurement software or by any other EMC measurement software packages using the RadiGen® software command codes.

(*) = only applicable for the 2-slot and 7-slot RadiCentre®
