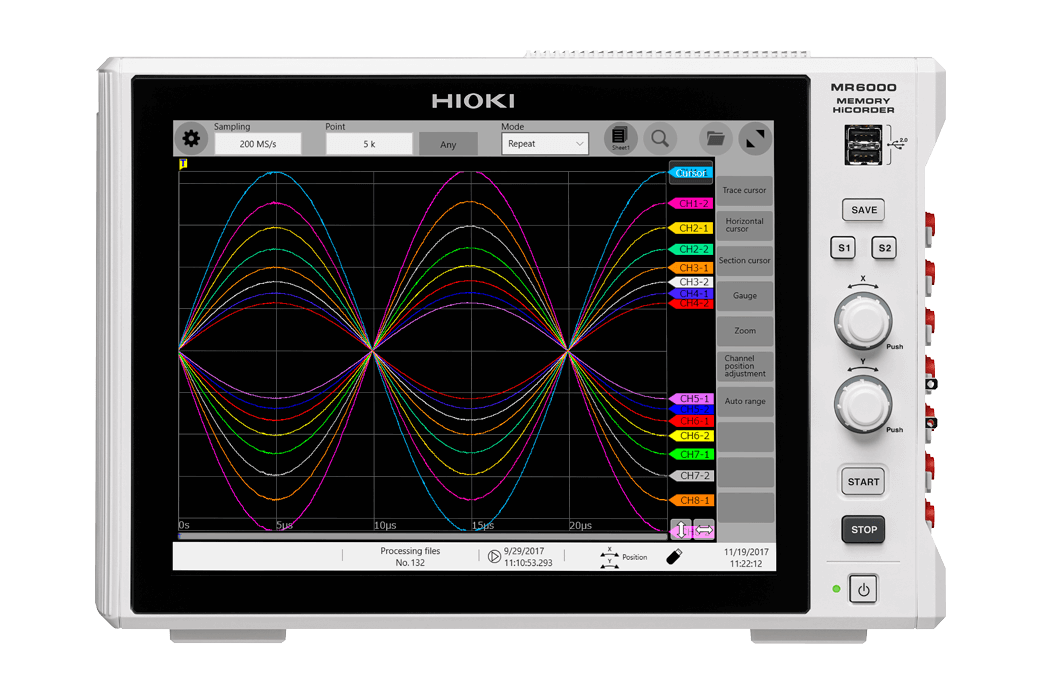

Hioki MR6000 Memory HiCorder

The MR6000 overcomes all barriers to reach new ground and meet challenges that are yet to be seen.

World class specifications, operability and design – Hioki’s newest memory recorder has been re-engineered from top to bottom, delivering unprecedented performance that will change how you look at waveform recording.


Model No. (Order Code)

MR6000 Main unit only, input modules up to 8 units
MR6000-01 Built-in real-time waveform calculation and other functionality

Note: Main unit MR6000/MR6000-01 cannot operate alone. You must install one or more optional input modules in the unit.

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

MR6000 MR6000-01
Additional function N/A Real-time waveform calculation, Digital Filter calculation
Number of input units Max. 8 units
Number of channels Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973)
Measurement ranges (20 div full-scale) 10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range
4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range
Max. allowable input 400 V DC (when using the U8976), 200 V DC (when using the U8975)
Frequency characteristics DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975)
Max. sampling rate 200 MS/s, all channnels simultaneously (when using the U8976)
External sampling: 10 MS/s
Recording methods Normal: Normal waveform recording
Envelope: Record maximum and minimum values every fixed period
Storage memory capacity 1 G-words
Removable storage SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1
FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI.
Display 12.1 inch XGA-TFT color LCD (1024 × 768 dots)
External interfaces LAN, USB, SD, SATA, Monitor output
Power supply 100 to 240 V AC (50/60 Hz) (300 VA max.)
Dimensions and mass 353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only)
Accessories Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only)



Category:

You may also like…

Related products

Key Features

  • High-speed 200 MS/s isolated testing (with High Speed Analog Unit U8976Ax8)
  • Simultaneously measure up to 32 analog channels (with 4ch Analog Unit U8975x8)
  • Real-time saving of data of all 32 ch at 1 MS/s (with SSD Unit U8332)

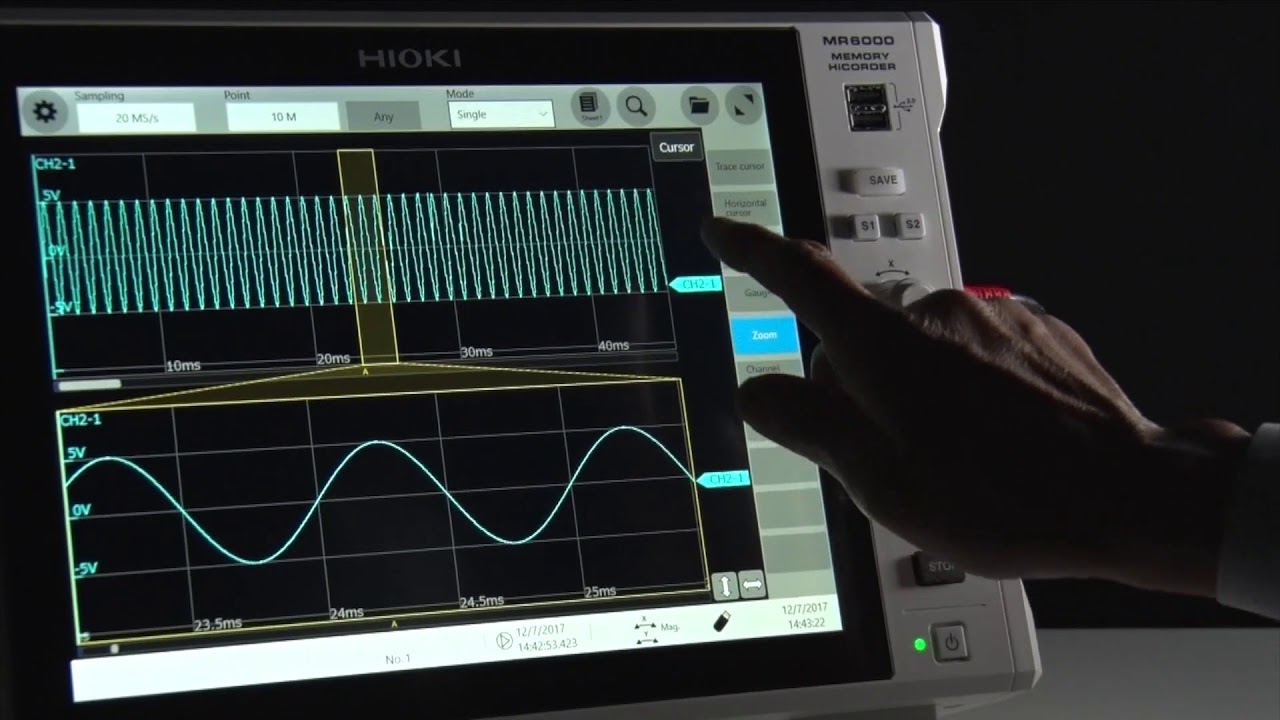

  • Highly-responsive touchscreen
  • Memory Concierge: Easily search for the waveform you want to see with the waveform search function
  • Faster save times (1/10th the time required by legacy models)
  • Real-time digital filter calculation
