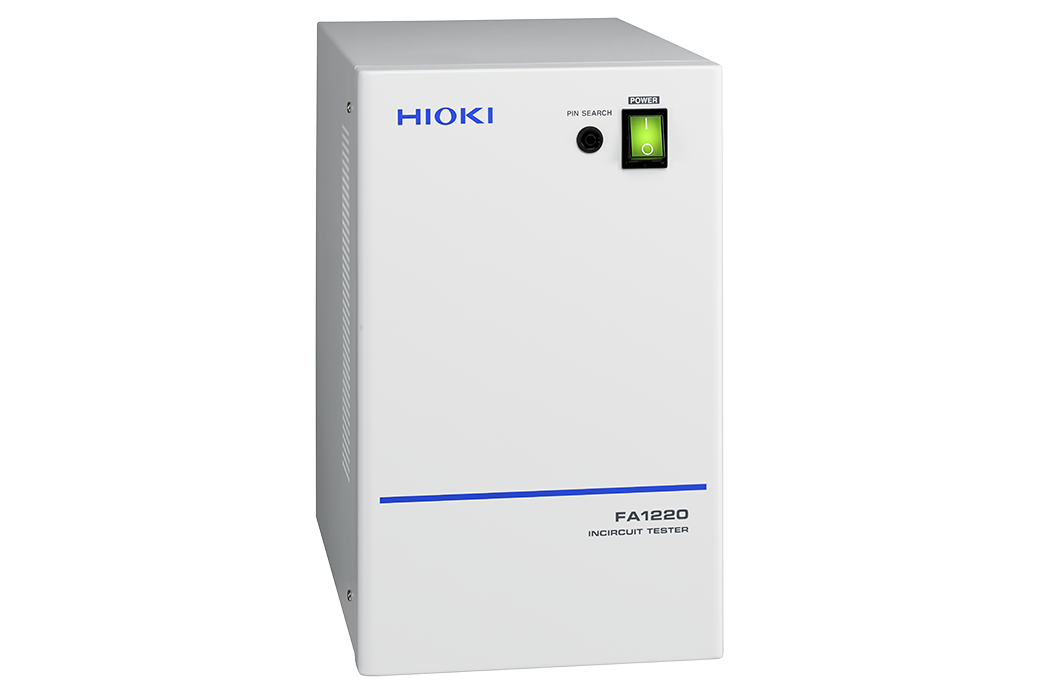

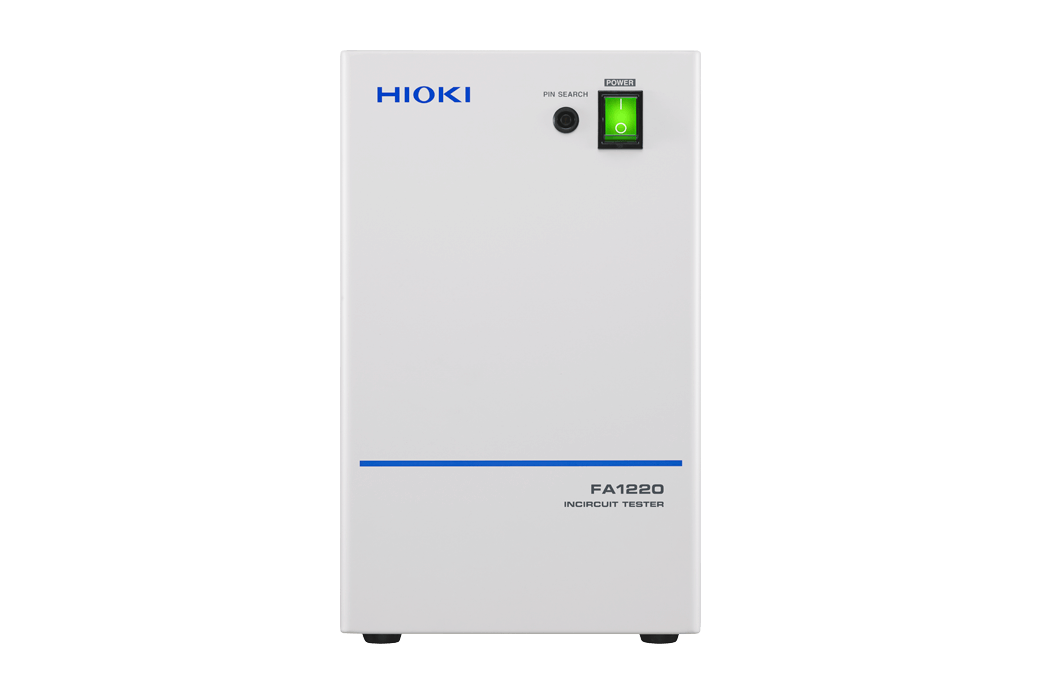

Hioki In-Circuit Tester FA1220
Introducing the Hioki In-Circuit Tester FA1220, the perfect solution for conducting functional tests of individual electronic circuit board components or while mounted on PCBs. With its compact size and easy-to-embed design, the FA1220 offers extensive function testing capabilities to complement existing automatic testing equipment.
The FA1220 is a high-precision testing equipment that leverages Hioki’s core competency in PCB and substrate inspection. It features a single, desktop tower that can be easily embedded in existing equipment, making it an ideal choice for manufacturers who want to enhance their testing capabilities without incurring significant costs.
The FA1220 comes equipped with an extensive function testing capability that allows it to perform various tests on electronic circuit board components, ensuring their proper functioning. Moreover, it features electrolytic capacitor and IC reverse insertion detection, which enhances the testing accuracy, enabling manufacturers to deliver high-quality products consistently.
To further increase test efficiency, the FA1220 also features a macro-testing function, which allows users to test multiple components at once, saving time and reducing production costs. Additionally, the four-terminal low-resistance measurement ensures stable measurement of low resistance, allowing for reliable testing results.
| Number of test points | Standard: 0 pins (scanner boards optional) Max. 2048 pins (expandable in blocks of 128 pins)* * The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product. |
|||||
|---|---|---|---|---|---|---|
| Number of test steps | Group data: 256 groups Round-robin short/open data: 2048 pins* Macro data: 2048 pins*/2048 steps (regardless of pin count) Component data: 10000 steps Charge data: 40 groups Pin contact data: 2048 pins* IC data: 500 steps (max. 2048 pins/step)** The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product. |
|||||
| Measurement unit | DC voltmeter: 800 μV f.s. to 25 V f.s., 8 ranges DC ammeter: 100 nA f.s. to 250 mA f.s., 9 ranges AC ammeter: 10 μA rms to 10 mA rms, 4 ranges HV voltmeter: 25 mV f.s. to 250 V f.s. (Requires E4210 and E4203) HV ammeter: 1.2 μA f.s. to 120 mA f.s. (Requires E4210 and E4203) |
|||||
| Scanner unit | Switch type: analog (Scanner Board E4201 and E4202), read relay (Scanner Board E4203) Number of channels: 128 per board Input protection: ±15 V (Scanner Board E4201 and E4202), none (Scanner Board E4203) |
|||||
| External I/O | Ethernet (LAN) 100Base-TX ×1 (please contact Hioki for communication with external devices.) | |||||

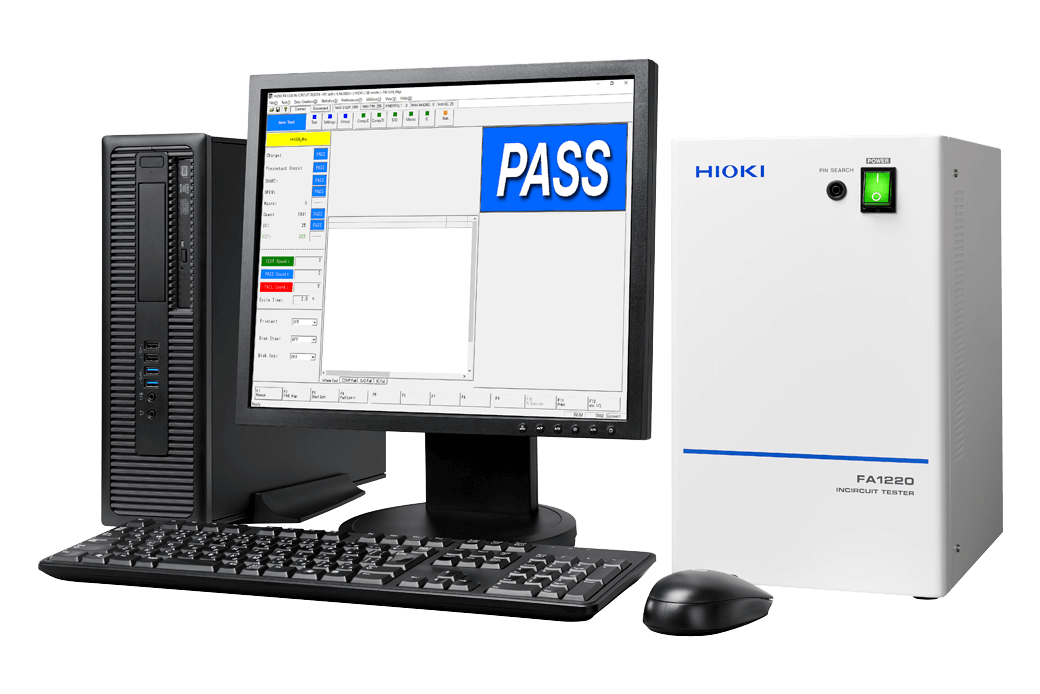

| Control unit | – Measurement control Operating system: Real-time operating system Storage device: SD card (for booting system)- Main unit control Operating system: Windows 10 Pro (64-bit) Storage device: 64 GB SSD Operation: keyboard and mouse Display: 15-inch display Printer: E4243 (option) |
|||||
| Power supply | Rated supply voltage: 100 to 240 V AC, 50 Hz/60 Hz Maximum power consumption: 1 kVA |
|||||
| Dimensions and mass | 655 mm (25.79 in.) W × 1830 mm (72.05 in.) H × 705 mm (27.76 in.) D, 310 kg (10934.7 oz.) | |||||
| Included accessories | Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1 | |||||
