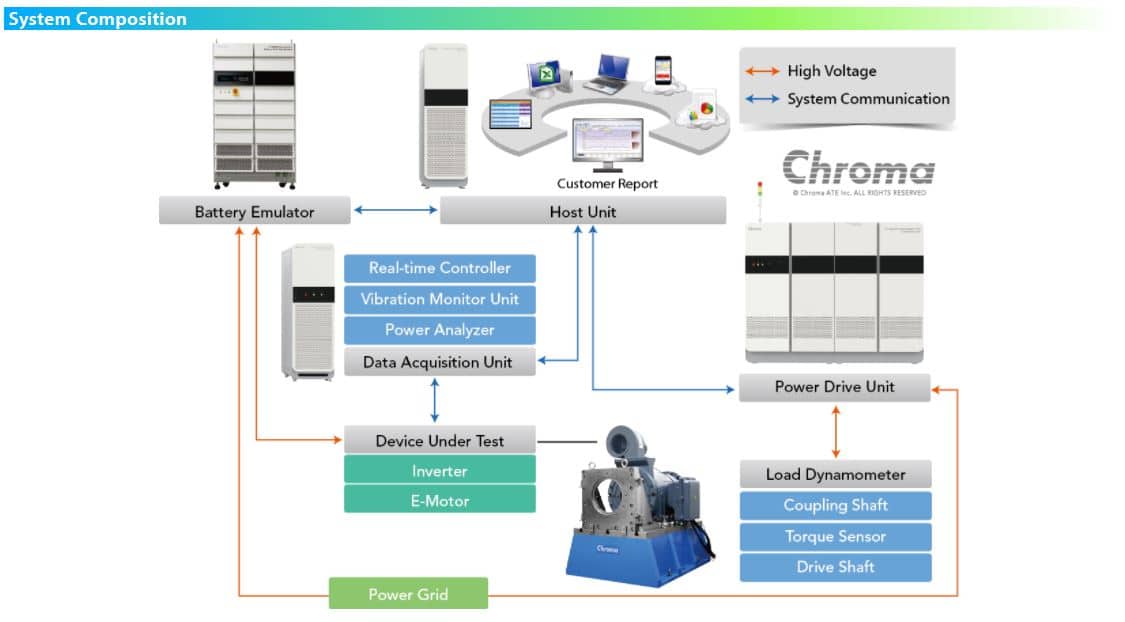

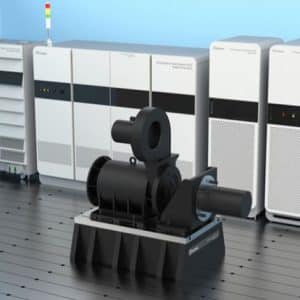

Chroma 1210, a newly designed electric propulsion test system offers a fully integrated test and simulation environment for testing various electric and electrified vehicles such as hydrogen fuel cell vehicles. Chroma 1210 test system can ultimately be used to validate the
electrified propulsion sub-systems including motors, motor controllers, and gear reduction box and electric drive systems, etc.

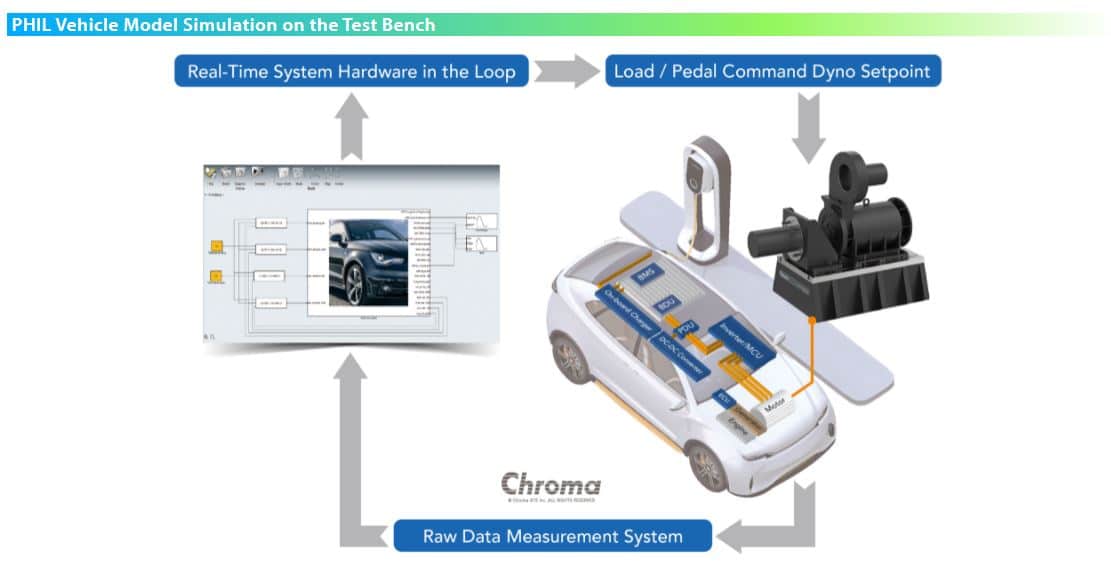

Chroma 1210 E-propulsion Test System suits performance calibration and verification of vehicle power systems. The versatile software operations are capable of loading the high-fidelity vehicle dynamic model for the specified electrical and mechanical
components’ simulation & verification. The manual and automatic operating interface offer the users the flexibility and convenience to synchronously record the essential system parameters such as voltage, current, power, rotational speed, torque, temperature as
to calculate the efficiency of the motor and controller and generate the torque curve graph. The electricity generated during the test cycle is fed back to the grid through the regenerative Chroma 17040. Moreover, the 17040 battery simulation function can simulate
the reaction characteristics of the battery while the vehicle is operating, and reliability of the verification is significantly increased.
