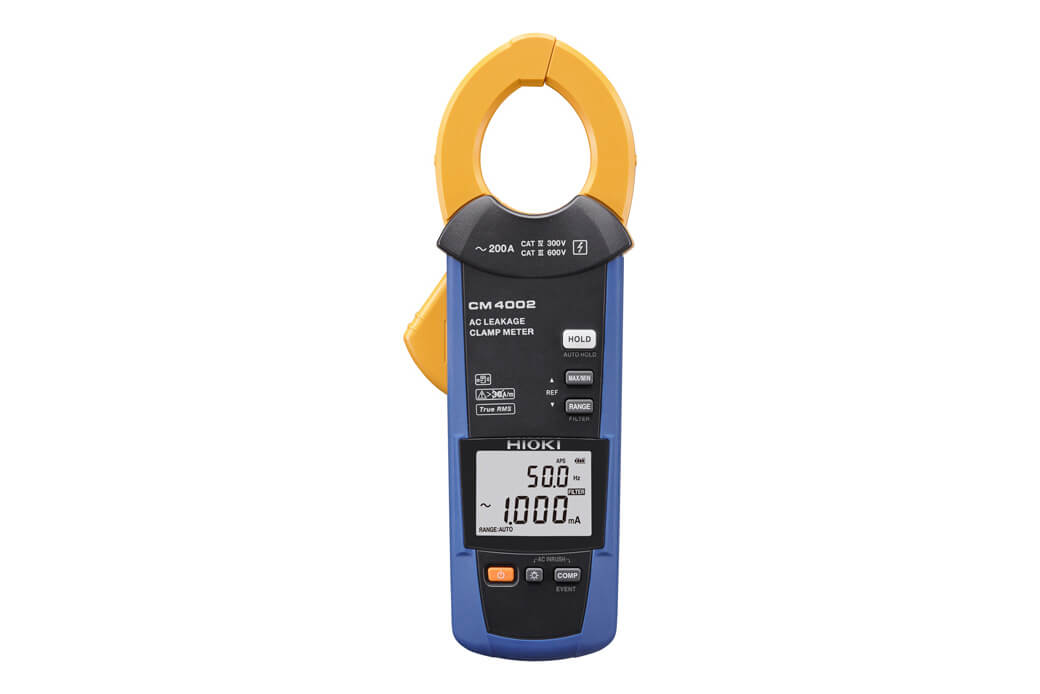

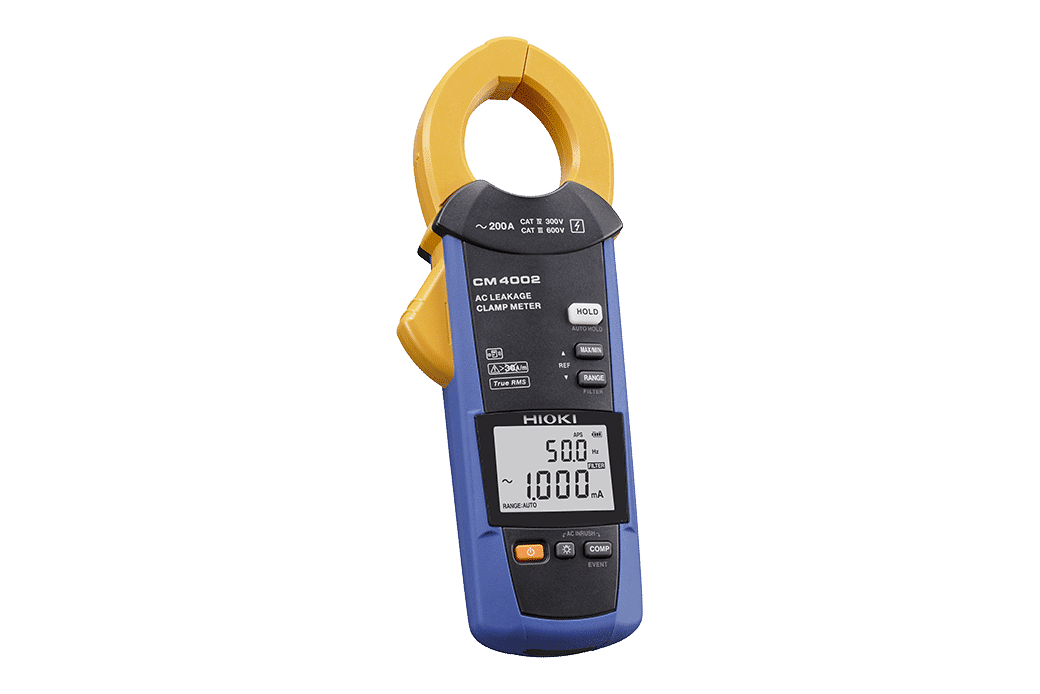

Hioki CM4002 AC Leakage Clamp Meter

Hioki CM4002 AC Leakage Clamp Meter

£499.84 exc. VAT

Out of stock

Prevent unexpected downtime! Identify potential problems and avoid large problems.

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the Hioki CM4002 to easily clamp within crowded cables in order to reduce work time and improve safety. Difined accuracy range  0.060 mA to 200.0 A.

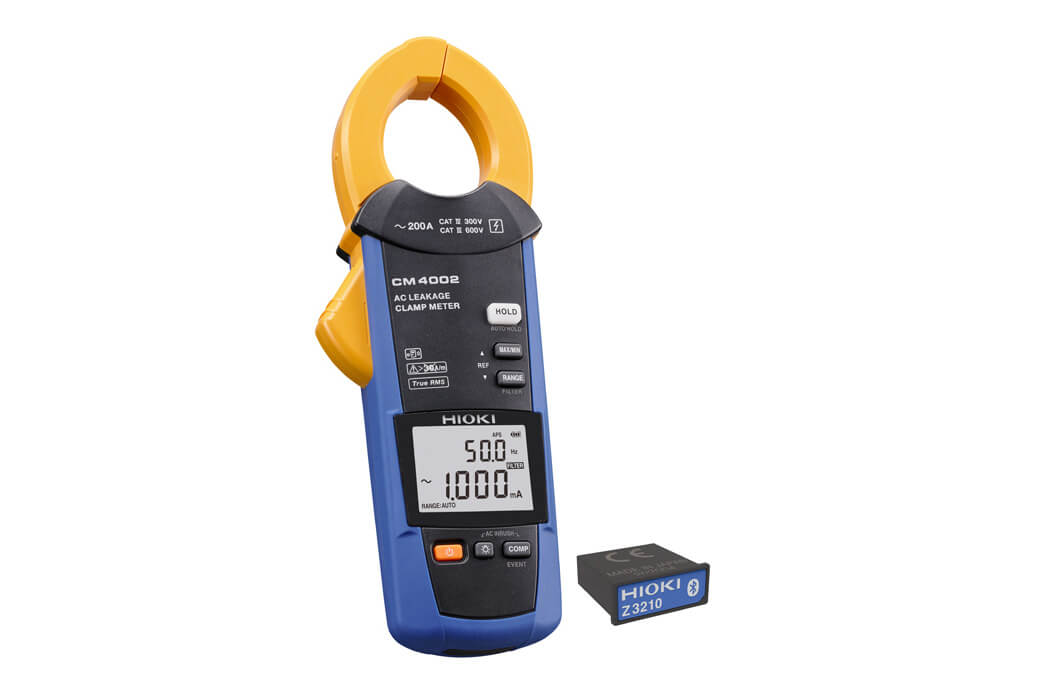

Now with Bluetooth option

Basic specifications (Accuracy guarantee period: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year)

AC Current range 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz – 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
Basic accuracy 15 Hz – 45 Hz, 400 Hz – 2 kHz: ±2.0% rdg ±5 dgt
Defined accuracy range: 0.060 mA to 200.0 A
AC Voltage range N/A
Frequency range 15.0 Hz to 2000 Hz
Crest factor 3 (other than 200.0 A range), 1.5 (200.0 A range)
Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function N/A
Other functions Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement
Display Display refresh rate: 5 times/s
Power supply AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)
Core jaw diameter φ 40 mm (1.57 in.)
Dimensions and mass 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)
Accessories Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2





You may also like…

Key Features

•  Slim jaws let you work with ease. Easily clamp within crowded cables to save work time and improve safety

• Measure everything from leakage to load with guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications

• Find issues faster with a comparator function, quickly identify leakage current locations with red backlight and audio alerts based on comparison with set threshold value

• AUTO HOLD to hold measured value for use in difficult places to see the display

•  -10 °C to 65 °C operating temperature range
